Prs3d_ToolQuadric Class Reference

Base class to build 3D surfaces presentation of quadric surfaces. More...

#include <Prs3d_ToolQuadric.hxx>

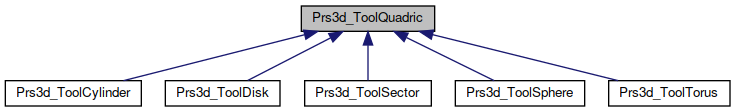

Inheritance diagram for Prs3d_ToolQuadric:

Public Member Functions
Handle< Graphic3d_ArrayOfTriangles >	CreateTriangulation (const gp_Trsf &theTrsf) const
	Generate primitives for 3D quadric surface presentation. More...
Handle< Poly_Triangulation >	CreatePolyTriangulation (const gp_Trsf &theTrsf) const
	Generate primitives for 3D quadric surface presentation. More...
void	FillArray (Handle< Graphic3d_ArrayOfTriangles > &theArray, const gp_Trsf &theTrsf) const
	Generate primitives for 3D quadric surface and fill the given array. More...
Standard_Integer	TrianglesNb () const
	Return number of triangles in generated presentation. More...
Standard_Integer	VerticesNb (bool theIsIndexed=true) const
	Return number of vertices in generated presentation. More...
void	FillArray (Handle< Graphic3d_ArrayOfTriangles > &theArray, Handle< Poly_Triangulation > &theTriangulation, const gp_Trsf &theTrsf) const
	Generate primitives for 3D quadric surface presentation. More...

Static Public Member Functions
static Standard_Integer	TrianglesNb (const Standard_Integer theSlicesNb, const Standard_Integer theStacksNb)
	Return number of triangles for presentation with the given params. More...
static Standard_Integer	VerticesNb (const Standard_Integer theSlicesNb, const Standard_Integer theStacksNb, const Standard_Boolean theIsIndexed=Standard_True)
	Return number of vertices for presentation with the given params. More...

Protected Member Functions
virtual gp_Pnt	Vertex (const Standard_Real theU, const Standard_Real theV) const =0
	Redefine this method to generate vertex at given parameters. More...
virtual gp_Dir	Normal (const Standard_Real theU, const Standard_Real theV) const =0
	Redefine this method to generate normal at given parameters. More...

Protected Attributes
Standard_Integer	mySlicesNb
	number of slices within U parameter More...
Standard_Integer	myStacksNb
	number of stacks within V parameter More...

Detailed Description

Base class to build 3D surfaces presentation of quadric surfaces.

Member Function Documentation

CreatePolyTriangulation()

Handle< Poly_Triangulation > Prs3d_ToolQuadric::CreatePolyTriangulation

(

const gp_Trsf &

theTrsf

)

const

Generate primitives for 3D quadric surface presentation.

Parameters

theTrsf

[in] optional transformation to apply

Returns

generated triangulation

CreateTriangulation()

Handle< Graphic3d_ArrayOfTriangles > Prs3d_ToolQuadric::CreateTriangulation

(

const gp_Trsf &

theTrsf

)

const

Generate primitives for 3D quadric surface presentation.

Parameters

theTrsf

[in] optional transformation to apply

Returns

generated triangulation

FillArray() [1/2]

void Prs3d_ToolQuadric::FillArray	(	Handle< Graphic3d_ArrayOfTriangles > &	theArray,
		const gp_Trsf &	theTrsf
	)		const

Generate primitives for 3D quadric surface and fill the given array.

Parameters

theArray	[in][out] the array of vertices; when NULL, function will create an indexed array; when not NULL, triangles will be appended to the end of array (will raise an exception if reserved array size is not large enough)
theTrsf	[in] optional transformation to apply

FillArray() [2/2]

void Prs3d_ToolQuadric::FillArray	(	Handle< Graphic3d_ArrayOfTriangles > &	theArray,
		Handle< Poly_Triangulation > &	theTriangulation,
		const gp_Trsf &	theTrsf
	)		const

Generate primitives for 3D quadric surface presentation.

Parameters

theArray	[out] generated array of triangles
theTriangulation	[out] generated triangulation
theTrsf	[in] optional transformation to apply

Deprecated:

("Deprecated method, CreateTriangulation() and CreatePolyTriangulation() should be used instead")

Normal()

virtual gp_Dir Prs3d_ToolQuadric::Normal ( const Standard_Real  theU, const Standard_Real  theV  ) const

protectedpure virtual

Redefine this method to generate normal at given parameters.

Implemented in Prs3d_ToolTorus, Prs3d_ToolDisk, Prs3d_ToolCylinder, Prs3d_ToolSphere, and Prs3d_ToolSector.

TrianglesNb() [1/2]

static Standard_Integer Prs3d_ToolQuadric::TrianglesNb ( const Standard_Integer  theSlicesNb, const Standard_Integer  theStacksNb  )

inlinestatic

Return number of triangles for presentation with the given params.

TrianglesNb() [2/2]

Standard_Integer Prs3d_ToolQuadric::TrianglesNb ( ) const

inline

Return number of triangles in generated presentation.

Vertex()

virtual gp_Pnt Prs3d_ToolQuadric::Vertex ( const Standard_Real  theU, const Standard_Real  theV  ) const

protectedpure virtual

Redefine this method to generate vertex at given parameters.

Implemented in Prs3d_ToolTorus, Prs3d_ToolDisk, Prs3d_ToolCylinder, Prs3d_ToolSphere, and Prs3d_ToolSector.

VerticesNb() [1/2]

static Standard_Integer Prs3d_ToolQuadric::VerticesNb ( const Standard_Integer  theSlicesNb, const Standard_Integer  theStacksNb, const Standard_Boolean  theIsIndexed = Standard_True  )

inlinestatic

Return number of vertices for presentation with the given params.

VerticesNb() [2/2]

Standard_Integer Prs3d_ToolQuadric::VerticesNb ( bool  theIsIndexed = true ) const

inline

Return number of vertices in generated presentation.

Field Documentation

mySlicesNb

Standard_Integer Prs3d_ToolQuadric::mySlicesNb

protected

number of slices within U parameter

myStacksNb

Standard_Integer Prs3d_ToolQuadric::myStacksNb

protected

number of stacks within V parameter

---

The documentation for this class was generated from the following file:

• Prs3d_ToolQuadric.hxx
